Performance: 13,7 – 82,0 kW
COP: 4,35 (A2/W35)
The advantages of the WP Max-AirMono F67 series at a glance:
Performance data for WP Max-AirMono F67
| Heating capacity | 13,7 – 82,0 kW |
| Power consumption | 2,9 – 19,8 kW |
| COP at rated value | 4,15 – 4,77 |
| Space heating energy efficiency | 192,2 % |
| Cooling capacity | 10,0 – 78,0 kW |
| EER at rated capacity | 6,0 – 7,3 (vorläufig) |
| Type | Fully hermetic, scroll, inverter |
| Speed | 1740 – 6960 n/min |
| Max. operating current | 29 A |
| Type | Air heat exchanger |
| Air flow rate | 2 x 25000 m³/h |
| Test pressure | 35 bar |
| Operating range | -30 – 50°C |
| Min. / Max. source temperature | -22 – 40°C |
| Type | Copper-brazed plate heat exchanger |
| Water flow rate (in series) | 1 – 5,8 m³/h |
| Water flow rate (in parallel) | 2 – 11,6 m³/h |
| Pressure drop | max. 0,3 bar |
| Temperature difference | 10 – 20 K |
| Test pressure | 45 bar |
| Operating range | -196 – 200°C |
| Min. / Max. cooling temperature | 25 – 72°C |
| Sound pressure level, outdoor unit at 5 m distance | 47 dB(A) provisional |
| Sound power level, outdoor unit | 56,1 dB(A) |
| L-WA maximum | 67,9 dB(A) |
| L-WA noise-reduced | 58,8 dB(A) |
| Dimensions, outdoor unit | 3301 x 2343 x 1400 BxHxT (mm) |
| Weight, outdoor unit | 1080 kg |
| Max. operating pressure, water | 3 bar |
| Max. low-pressure temperature | 72°C |

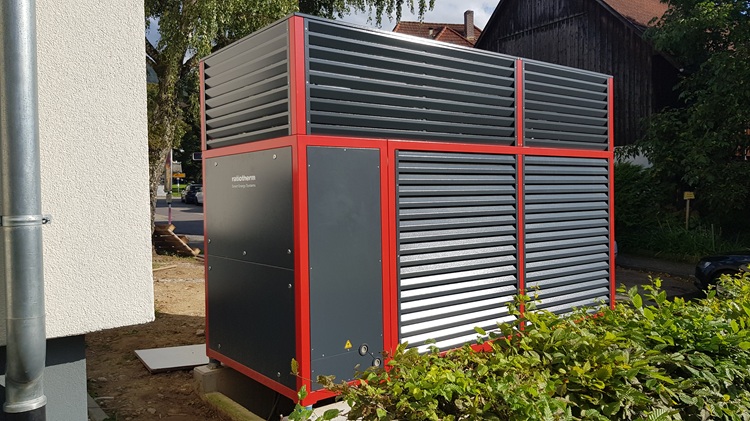

XXL air source heat pump
The heat pump has two separate refrigeration circuits, which allow for a wide range of performance. This enables flexible application options from multi-family homes to industrial facilities. It is highly efficient and, thanks to high flow temperatures, also ideal for renovation projects. This efficiency is achieved through the use of the environmentally friendly and innovative refrigerant propane (R290). This means that this generation of heat pumps protects our planet as it does not damage the ozone layer. The arrangement of the evaporator and fans means that the intake air is expelled upwards. This allows the unit to be installed close to traffic areas as there are no disruptive cold air currents. Nowadays, it goes without saying that the WP MaxAirMono heat pump can be operated specifically with surplus PV power. The monoblock offers a variety of interfaces for communication with smart meters or energy management systems.
Special features:
Inverter control:
The WP Max-AirMono F67 series can cover a very wide range of heating and cooling capacities thanks to the standard integrated speed control using inverter technology. This opens up a wide range of applications. The inverter technology also allows, for example, power regulation to use PV power for heating or cooling as required. This heat pump offers you maximum savings potential, as it always delivers the right output and automatically adapts to the current energy requirements of the living space in every season.
